This prodcct is a modular, soundproof meeting cabin for 1–6 people, ideal for open-plan offices, hotels, hospitals, and home offices. It requires no construction and is plug-and-play.
Built with an aluminum frame, 10 mm laminated tempered glass, and sound-insulating composite panels, it achieves 30±3 dB noise reduction, with tuned attenuation for speech privacy. An ultra-quiet ventilation system runs below 35 dB, and integrated dimmable LED lighting, antistatic carpet, universal sockets, and USB ports provide a complete workspace.
Measuring W2600 × D2487 × H2338 mm externally, it occupies 6.5 m² and weighs 774 kg. Available in multiple standard colors, it also supports custom RAL finishes, acoustic glass upgrades, smart switchable glass, branding, and non-standard sizes.
Suitable for team meetings, video conferences, and confidential discussions, the Model-XL combines acoustic performance, flexibility, and eco-friendly recyclable construction.
The Model-XL size offers a spacious and comfortable interior designed for team meetings, accommodating 1–6 people. This modular soundproof meeting cabin creates a quiet, private, and highly efficient workspace solution for open-plan offices, hotels, hospitals, coworking spaces, and home offices.

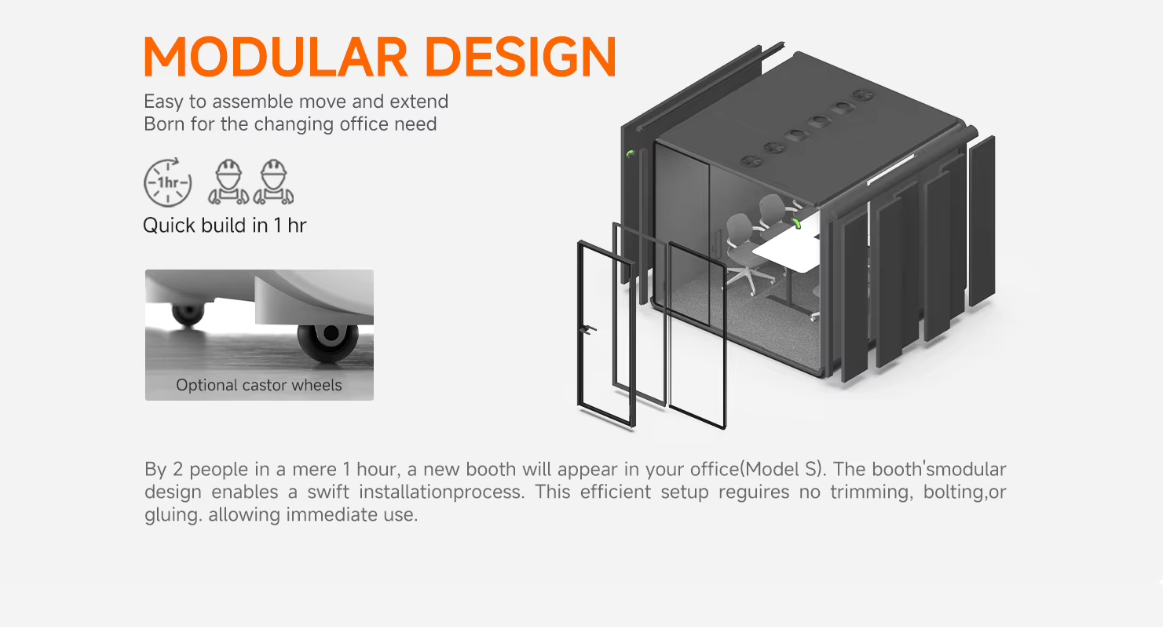

With a construction-free installation design, the Model-XL requires no complicated renovation or building modifications. Its plug-and-play structure allows businesses to quickly add an independent meeting space anywhere, improving workplace flexibility and productivity.
Frame:
High-strength aluminum alloy profile with a thickness of 1.5–2.5 mm, providing a durable, lightweight, and environmentally friendly structure.
Window:

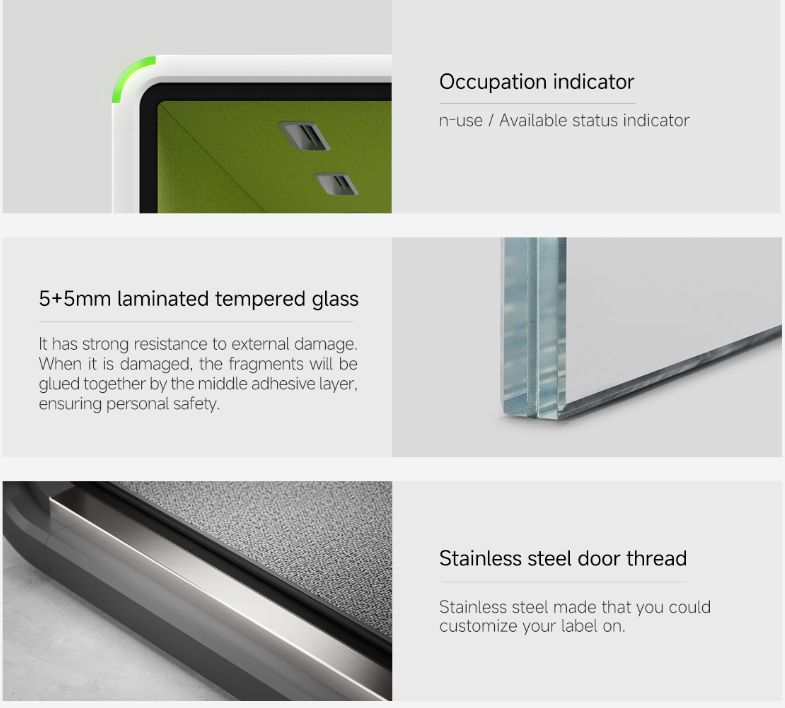

10 mm high-strength film-laminated tempered glass with an aluminum frame, offering excellent safety, transparency, and acoustic performance.
Wall Panel:
9+12 mm environmentally friendly composite sound-insulating panels designed to improve noise reduction and user comfort.

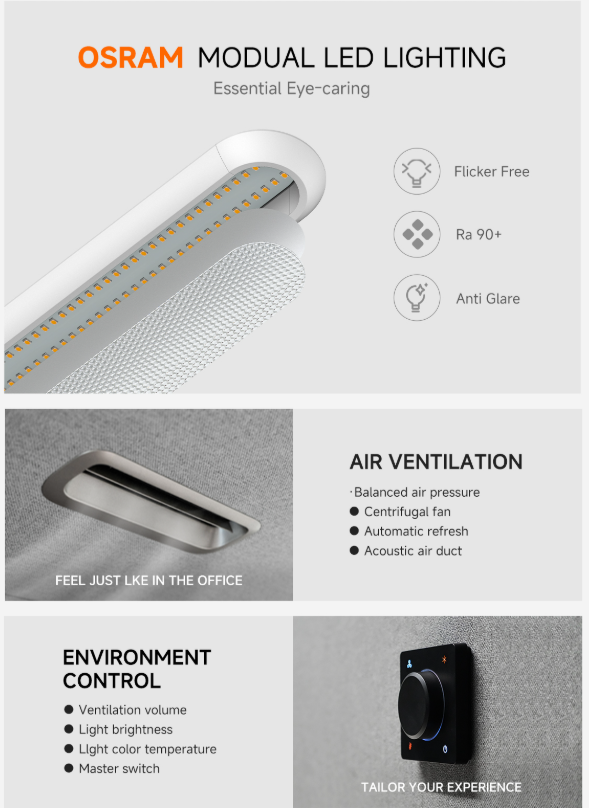

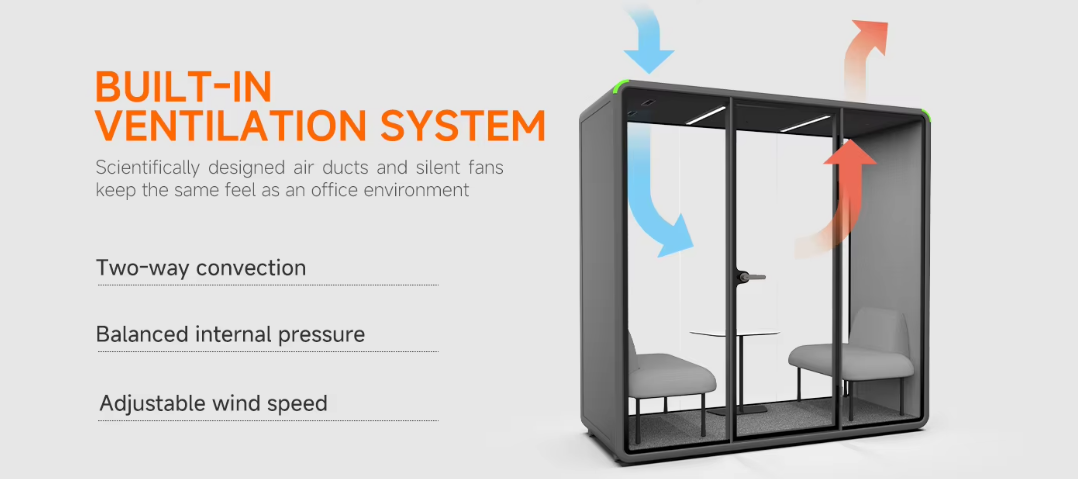

The Model-XL is equipped with an advanced ventilation system designed for continuous fresh air circulation while maintaining a quiet working environment.
The optimized airflow design ensures comfortable temperature control without disturbing meetings or conversations.
The cabin integrates essential workplace features to provide a convenient and comfortable user experience.
The Model-XL achieves 30±3 dB acoustic performance (ISO Class D equivalent).
Featuring 10 mm laminated tempered glass and optimized acoustic construction, the cabin effectively reduces external noise interference. The acoustic system is specially tuned for the human speech frequency range of 1000–4000 Hz, achieving more than 30 dB voice attenuation to protect confidential discussions, team meetings, and private conversations.

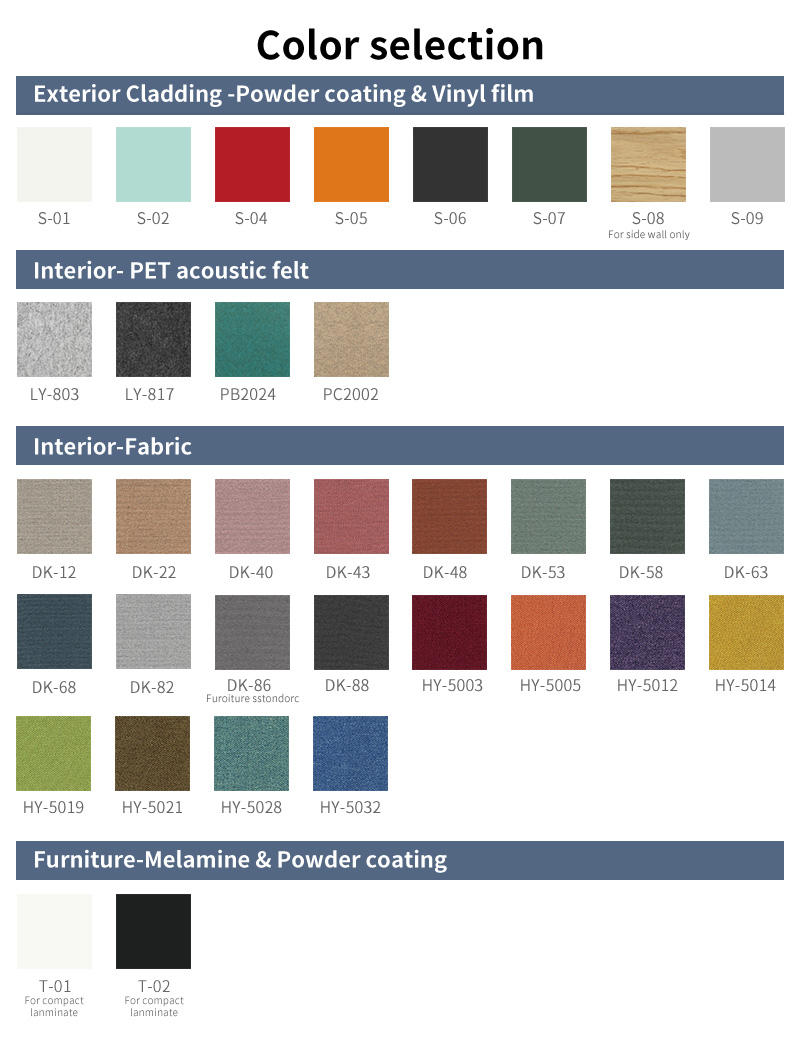

Standard finishes:

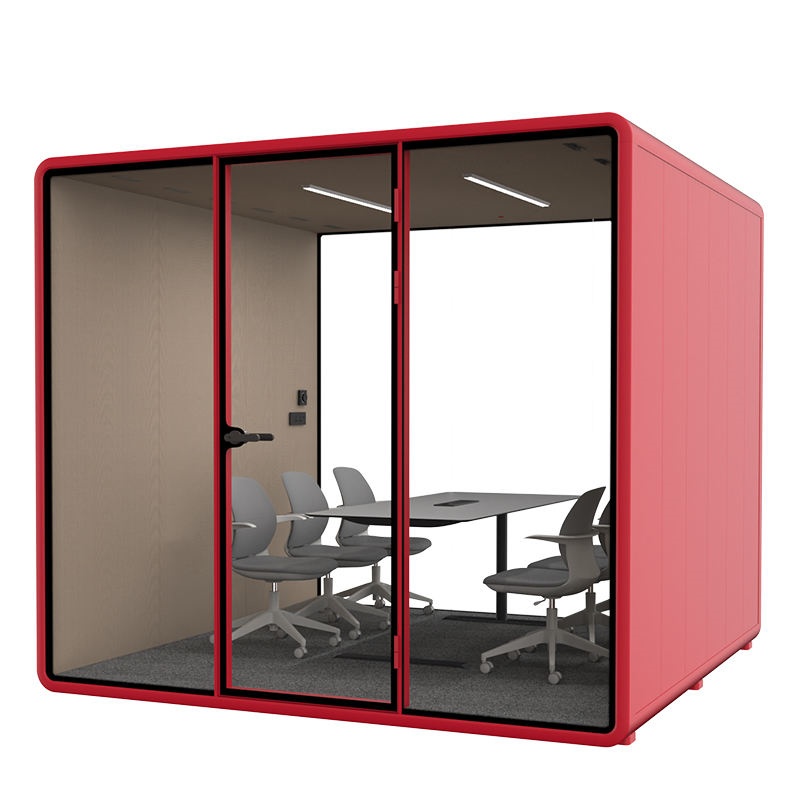

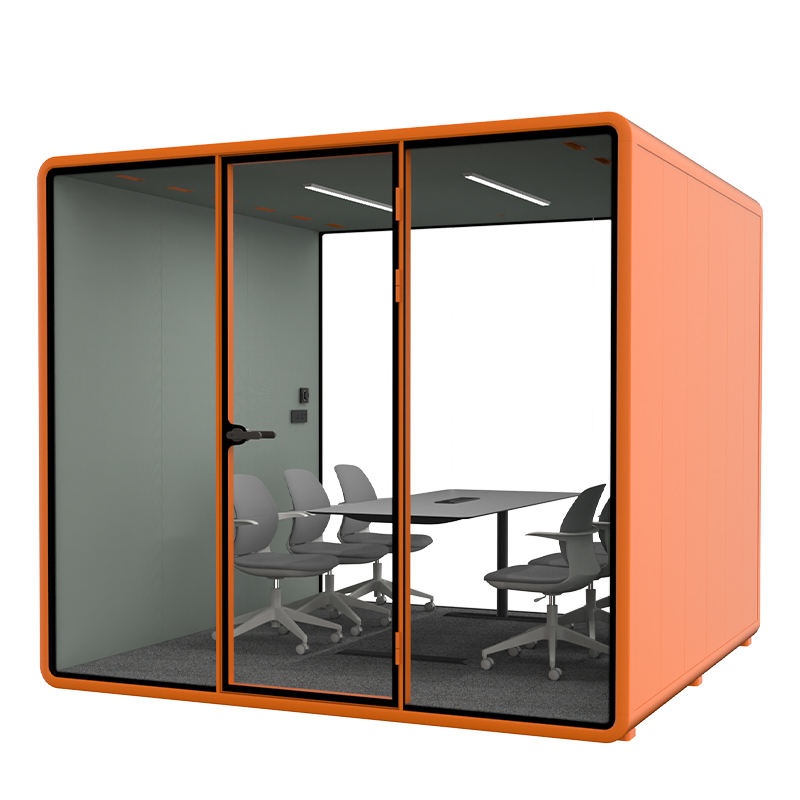

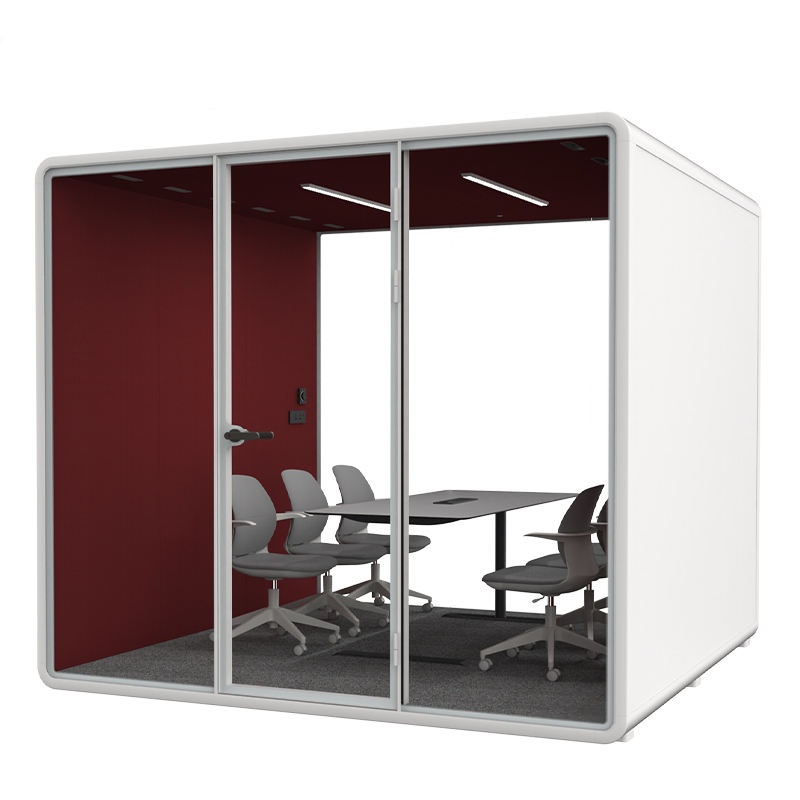

Black, white, light blue, dark blue, dark green, orange, dark gray, and red.
Custom RAL color options available:
Please provide your preferred RAL color codes for customized finishes.
Exterior Size:
W2600 mm × D2487 mm × H2338 mm
(W102.4″ × D97.6″ × H92″)
Interior Size:
W2462 mm × D2447 mm × H2146 mm
(W96.9″ × D96.3″ × H84.5″)
Floor Space:
6.5 m²
Net Weight:
774 kg
Package Dimensions:
W2620 × D760 × H1265 mm
+
W2320 × D760 × H1265 mm
Color Customization:
Choose from standard colors or provide RAL / CMYK color codes for personalized finishes.
Glass Upgrade:
Options include regular glass, enhanced soundproof glass, and reinforced acoustic door frames for improved noise isolation.
Glass-side Layout:
Available configurations include 1-glass-side and 2-glass-side designs to optimize natural lighting and visual openness.
Smart Switchable Glass:
Remote-controlled smart glass allows instant switching between transparent and milky-opaque modes for flexible privacy control.
Frosted Glass Foil:
Optional frosted film application provides additional visual privacy.
Branding Service:
Company logos and customized exterior designs can be applied according to corporate brand guidelines.
Non-standard Sizes:
Custom dimensions are available to meet unique installation requirements.

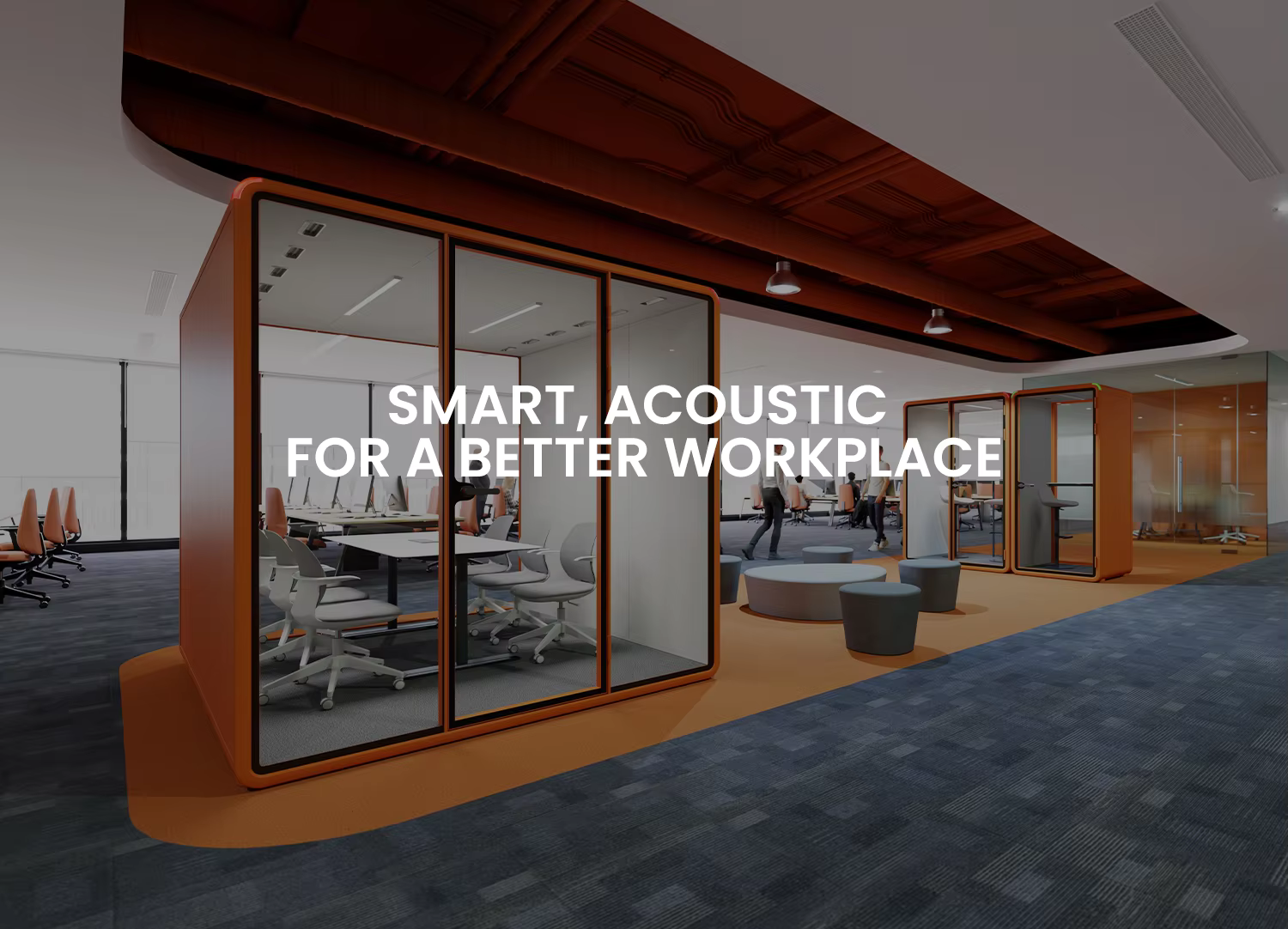

The Model-XL modular acoustic meeting pod is suitable for a wide range of professional environments, including:
The Model-XL modular acoustic meeting pod is a ready-to-use privacy solution designed for modern flexible workplaces. Combining advanced sound isolation technology, modular construction, and customizable design options, it creates a quiet and productive environment for communication, collaboration, and focused work.
Built with eco-friendly recyclable aluminum materials, the Model-XL delivers long-term value through durability, sustainability, and adaptability, making it an ideal choice for today’s evolving workspace needs.
