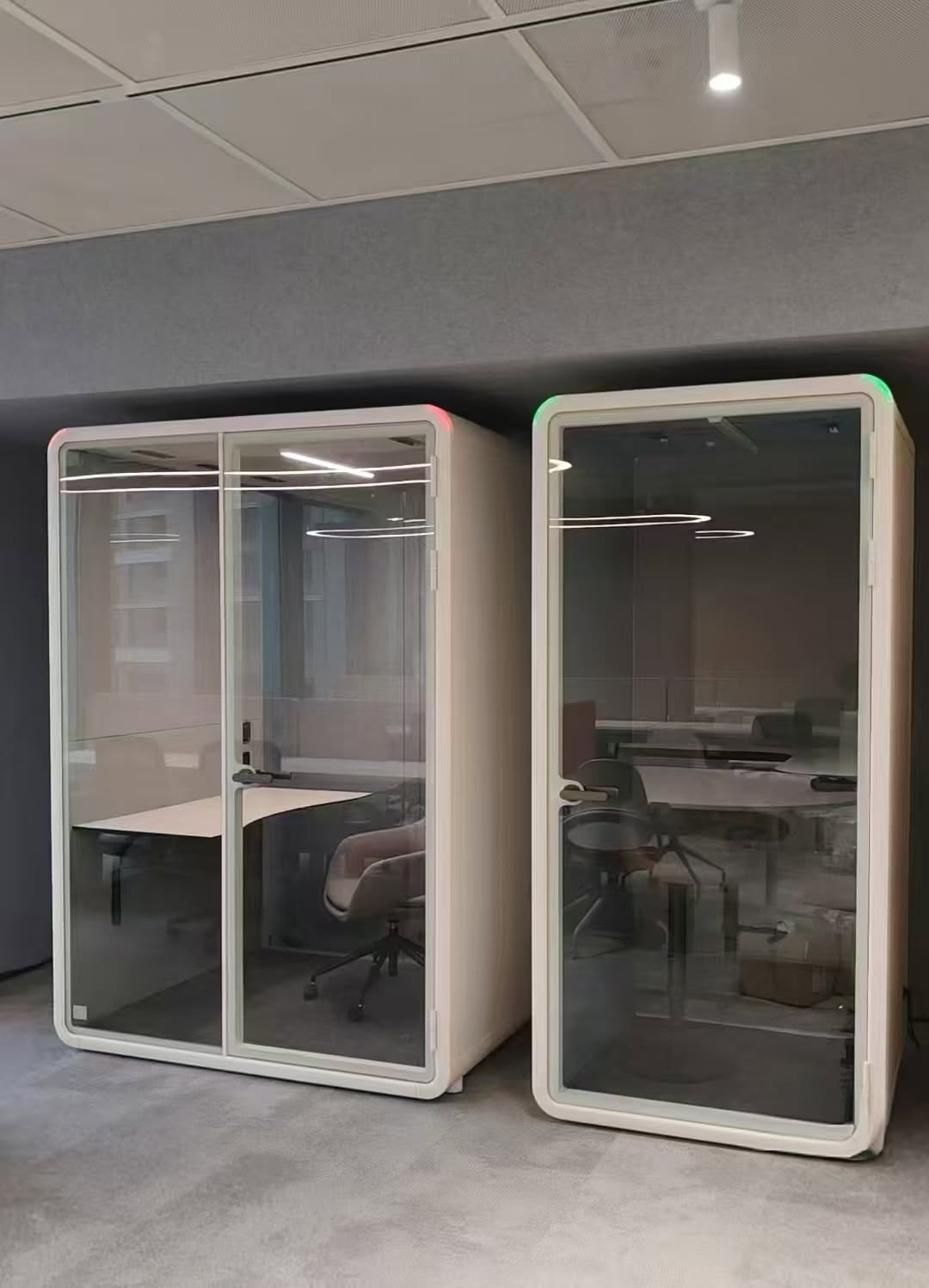

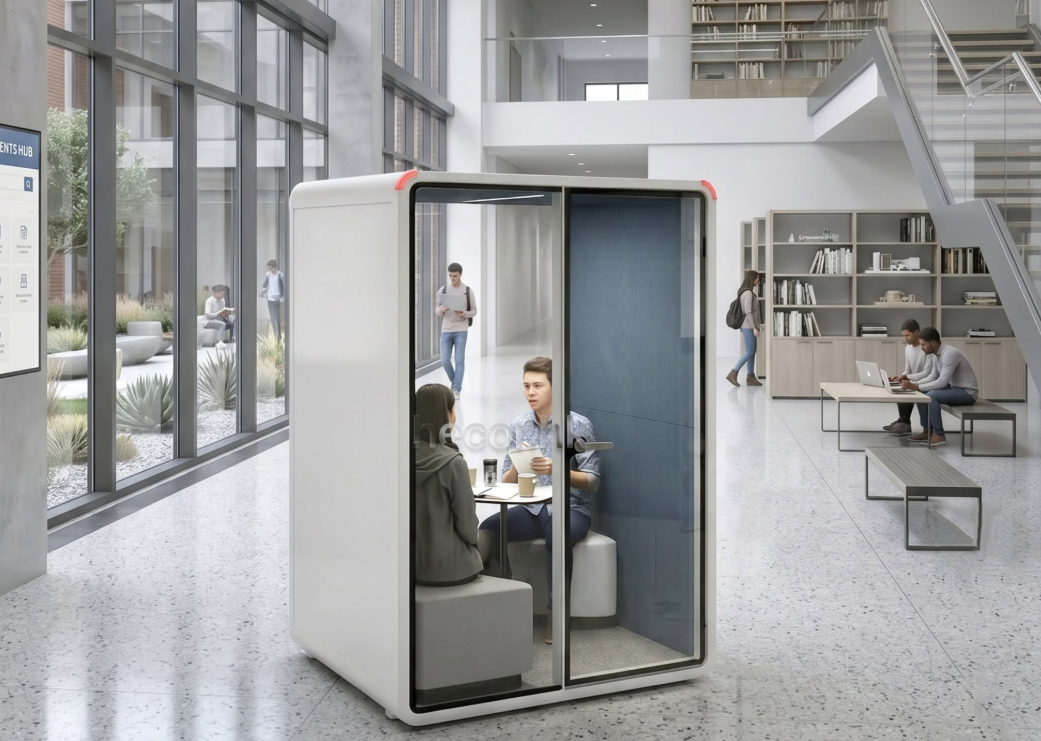

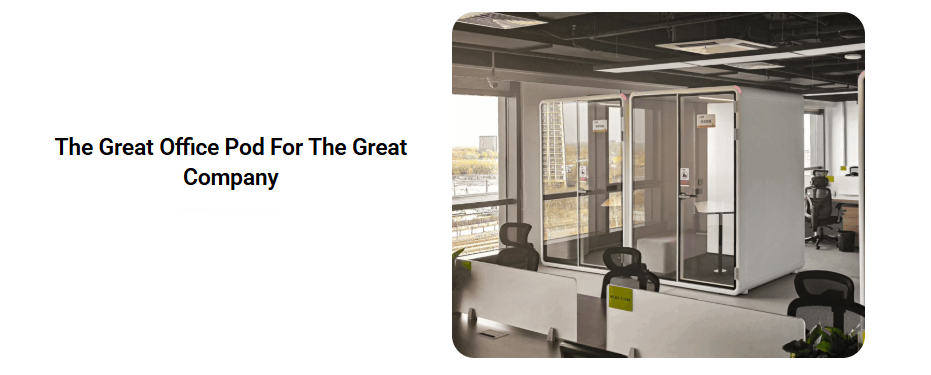

The Model-M size provides ample interior space for team meetings, accommodating 1-2 people. This modular, soundproof meeting cabin creates a quiet, private, and efficient work environment for open-plan offices, hotels, hospitals, and home offices. It requires no construction, is plug-and-play, and quickly adds a separate meeting space to any building layout.
Key Features
Materials
- Frame: Aluminum alloy, 1.5‑2.5 mm thick aluminum profile
- Window: Aluminum‑framed 10 mm high‑strength film‑laminated tempered glass
- Wall panel: 9+12 mm sound‑insulating environmental‑friendly composite panel

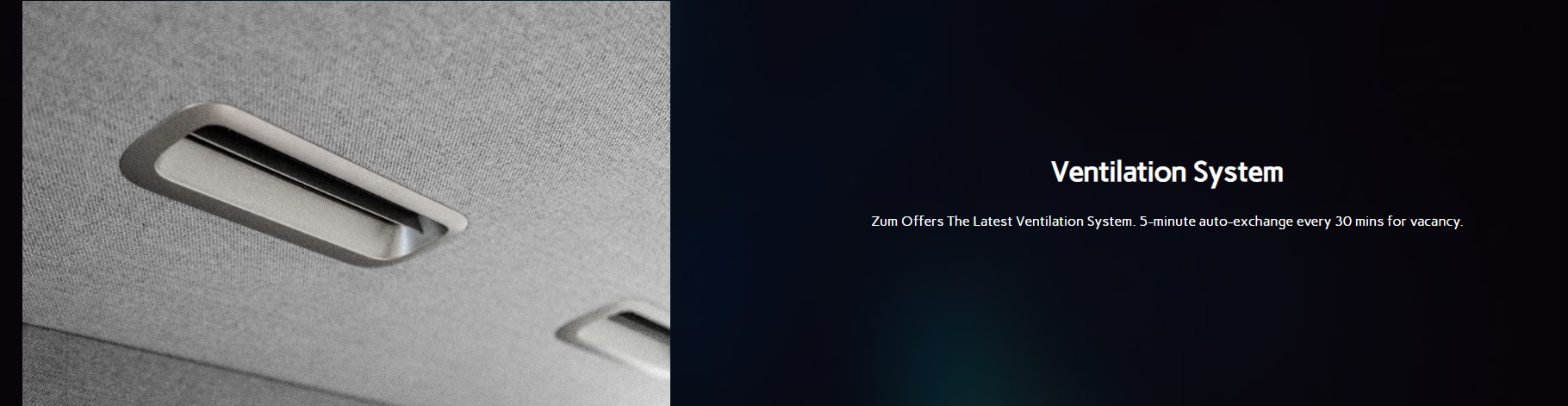

Ultra‑Quiet Ventilation System
- Noise level under full load operation below 35 dB
- Speed: 750/1200 rpm
- Fan volume: 89/120 CFM
- Average ventilation: 330 m³/h
Equipment & Power System
- Antistatic low‑pile carpet
- Integrated dimmable LED lighting: 3000K‑6000K, 0‑1800 lm
- Power input: 85‑264 VAC, 47‑63 Hz, max power 52 W
- Outlets: 2×5‑hole universal sockets, 1×USB‑A port, 1×USB‑C port
- Movable hidden castors plus adjustable leveling feet for easy relocation and stable placement
Acoustic Performance (Tested per international NIC standard)
- 30±3 dB (ISO Class D equivalent).
The 10 mm laminated tempered glass offers reliable baseline sound reduction. The cabin is acoustically tuned for speech‑sensitive frequency band of 1000‑4000 Hz, achieving over 30 dB noise attenuation for human voice to secure private talks and team discussions.
Colors
Standard finishes: Black, white, light blue, dark blue, dark green, orange, dark gray, red.
Custom RAL color options available, please provide your RAL color codes.
Dimension & Weight
- Exterior Size: W1600 mm × D1375 mm × H2338 mm (W63″ × D54.11″ × H92″)
- Interior Size: W1462 mm × D1335 mm × H2146 mm (W57.6″ × D52.6″ × H84.5″)
- Floor space: 2.2 m²
- Net Weight: 409kg
- Package dimensions:
W2320×D900×H1265 mm
Customization Options
- Color Customization: Select standard colors or supply RAL / CMYK codes for special custom finishes.
- Glass Upgrade: Regular glass, enhanced sound‑proof glass and reinforced acoustic door frame for maximum noise reduction.
- Glass‑side Layout: Optional 1‑glass‑side / 2‑glass‑side configuration to adjust natural light and visual style.
- Smart Switchable Glass: Remote‑controlled smart glass, switching between transparent and milky‑opaque state for flexible privacy management.
- Frosted glass foil: Apply frosted film on glass surfaces for extra visual privacy.
- Branding service: Print company logo, customize appearance following your corporate‑design guideline.
- Non‑standard sizes: Custom‑manufactured dimensions to fit special‑site requirements.
Application Scenarios
Office buildings, hotel conference zones, hospital quiet rooms, home‑office, co‑working spaces, team brainstorming, online conferences, confidential negotiation, remote video meetings.
Additional Information
The Model-M size modular acoustic meeting pod is a ready‑to‑use privacy solution for modern open‑plan workspaces. Adopting advanced sound‑isolation construction, it guarantees disturbance‑free conversation and high‑level privacy. Modular, adjustable and fully customizable, this pod satisfies diversified office demands. Eco‑friendly recyclable aluminum‑based construction brings sustainable long‑term value to your workspace.
