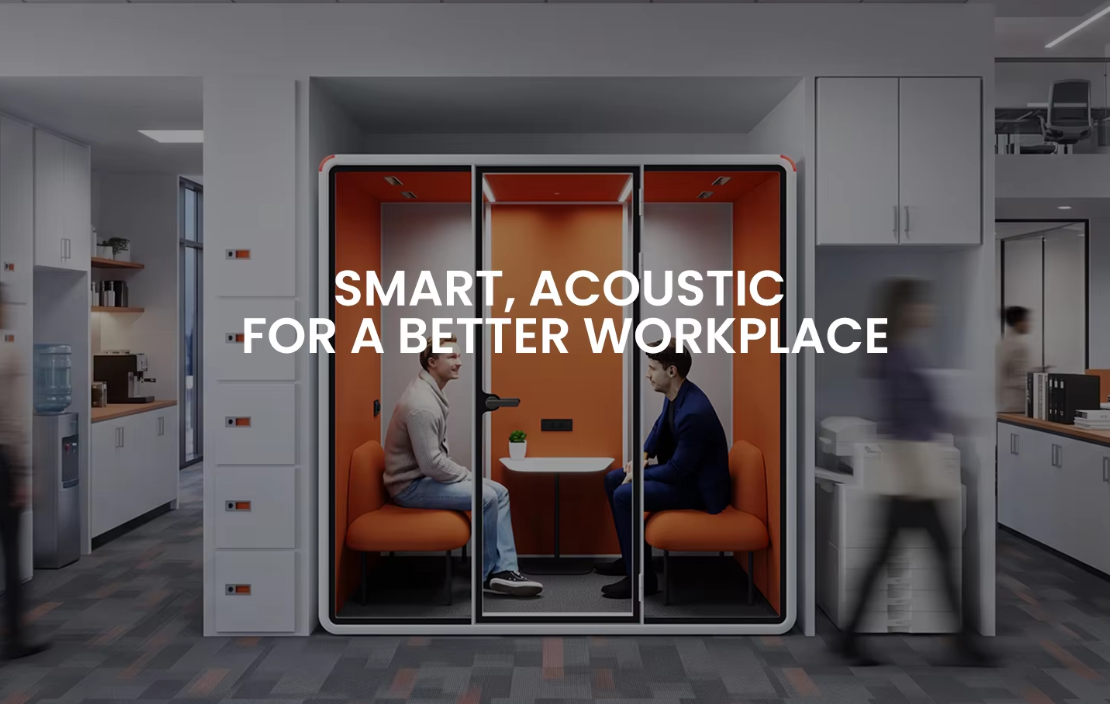

Want a truly quiet and private two‑person meeting space in a bustling open office? The Model‑SL is the answer. Occupying just 2.2㎡ and accommodating 1‑2 people, it requires no construction—just plug in and use, like building blocks. Its aluminum frame, sound‑insulating composite panels, and 10mm tempered glass are tuned for the speech‑sensitive 1000‑4000Hz range, delivering 30dB noise reduction—outside noise fades, inside conversations stay clear. The built‑in ultra‑quiet ventilation runs under 35dB at full load, softer than a whisper. Dimmable LED lighting and ample power outlets (including USB‑C) keep devices charged. Hidden castors make relocation easy, while multiple standard colors and RAL custom finishes let you match any décor. Upgrade to smart switchable glass, add your logo, or choose one‑ or two‑glass side panels. Whether for brainstorming, online meetings, or confidential negotiations, this eco‑friendly, flexible pod creates an instant “island of silence” without permanent renovation.
The Model‑SL dimensional specification offers generous internal volume, accommodating 1‑2 persons for team meeting scenarios. This modular acoustic cabin is engineered for open‑plan offices, hospitality, healthcare, and residential environments, providing a low‑noise, high‑privacy independent workspace. The product requires no structural modification, operates on a plug‑and‑play basis, and can be rapidly integrated into existing floor plans for flexible deployment of separate meeting zones.
Full‑load operating noise level ≤ 35 dB(A), tested per ISO 11201 conditions.
Dual‑speed centrifugal fan: low speed 750 rpm / high speed 1200 rpm, corresponding airflow 89 CFM / 120 CFM.
Average air exchange rate 330 m³/h, meeting minimum fresh air requirements per EN 16798‑1 for indoor air quality.
Overall sound insulation 30±3 dB, equivalent to ISO Class D rating.
The 10 mm laminated tempered glass provides a baseline sound reduction; the cabin is acoustically tuned to suppress resonance in the speech‑dominant frequency band (1000‑4000 Hz), achieving over 30 dB attenuation of speech intelligibility index (SII), effectively preventing voice information leakage.
Standard finishes: Black (RAL 9005), White (RAL 9016), Light Blue (RAL 5012), Dark Blue (RAL 5022), Dark Green (RAL 6009), Orange (RAL 2004), Dark Grey (RAL 7024), Red (RAL 3020).
Custom RAL colours available upon provision of RAL codes; also supports non‑standard colour matching based on CMYK values.
Exterior (W×D×H): 2300 mm × 966 mm × 2338 mm (90.6″ × 38″ × 92″)
Interior (W×D×H): 2162 mm × 926 mm × 2146 mm (85.11″ × 36.5″ × 84.5″)
Footprint: 2.2 m²
Net weight: 471 kg
Package dimensions (W×D×H): 2320 mm × 760 mm × 1265 mm
Colour Customization: Select standard colours or supply RAL/CMYK codes for special industrial finishing.
Glass Upgrade: Optional regular glass, enhanced sound‑proof glass (multi‑layer laminated), and reinforced acoustic door frame to further increase overall sound insulation.
Glass‑side Layout: Optional 1‑glass‑side or 2‑glass‑side configuration to adjust daylight factor and visual transparency.
Smart Switchable Glass: Remote‑controlled electrochromic glass, toggling between transparent and opaque frosted states for on‑demand privacy control.
Frosted Glass Foil: Add a frosted film to the inner glass surface for additional visual obscuration.
Branding Service: Screen‑print corporate logos or customise exterior graphics per CI guidelines.
Non‑standard Sizes: Accept custom dimensions (W×D×H) to accommodate site‑specific spatial constraints.
Commercial office buildings, hotel conference zones, hospital quiet rooms, home offices, co‑working spaces, team brainstorming areas, remote online meetings, confidential negotiations, and video conferencing.
Supplementary Technical Notes
The Model‑SL modular acoustic pod is a ready‑to‑install privacy enclosure for modern open‑plan architectural spaces. Its acoustic construction is based on the mass‑spring‑mass composite principle, optimised via finite‑element acoustic simulation, ensuring that the privacy index (PI) remains below threshold levels. The product employs fully recyclable aluminium materials, and its life‑cycle assessment (LCA) aligns with green building certification systems, delivering sustainable long‑term operational value.
